Geared mounting tool
The gear mounting tool is powerful, versatile and easy to use. Using the force of 30 Nm the tool applies a force of 3 Metric Tonnes. With exchangeable claws it fits every track, allowing optimal grip and precision.
The new tool reduces mounting time to a minimum, allowing you to spend your time on business. The only additional equipment needed is a cordless drill to ensure a successful mounting of your Olofsfors Track.
Read the instructions carefully.
Spare part kit

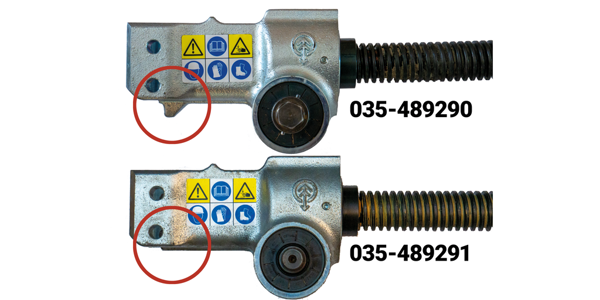

Spare part kit containing threaded rod, complete with mounting parts and grease. Note the design of the tensioner to order the correct spare part kit.
Choose the right tracks for your machine
1. Cross member
Our nine profiles provide different degrees of grip and flotation. EX, OF, and EVO gives better grip while U, Baltic, and CoverX are unbeatable for flotation. ECO, KovaX, and Combination are our all-round profiles.
2. Cross member type
Material thickness, Light, Normal and Plus. Applicable for certain track types:
Light: Lighter cross members for forwarders with a load capacity up to 12 ton or harvesters with a machine weight up to 15 ton.
Normal: Standard size cross members for forwarders with a load capacity between 12-20 ton or harvesters with a machine weight up to 25 ton.
Plus: Our strongest cross members for forwarders with a load capacity up to 20 ton.
For forwarders with payloads exceeding 20 tons, please consult with your Olofsfors dealer.
3. Link system
Choose between 22, 26, 29, 30 mm or Max based on machine size and terrain. Smaller link systems for lighter machines. Larger machines or machines that run in wet ground require more powerful link systems. Max has more moving parts which reduces wear.
4. Version
We offer standard, soft or narrow versions for your cross-member ends. Soft protects the tire side better for example against stones and narrow fits when you have less space.
5. Position
Customize the position of the cross member on your machine. Select the asymmetric position or one side short to get maximum flotation capacity if your tires have little space against the machine.
6. Cleat
Add cleats to your track to increase the grip of the machine and reduce wear on the cross members. You can choose single cleat, double cleat, road cleat, or without cleats.
